5-inch TFT LCD Display Module – 480*854 Resolution ,with Driver Board
- Size: 5 inch 480*854 LCD Panel
- Brightness: 300nit
- Interface: RGB
- Driver IC: ST7701
- Viewing direction: ALL
Order prototype samples
This 5 inch TFT LCD display panel is a square model with 480*854 resolution, it is an RGB interface and use a white LED backlight, in all viewing direction. The Luminance is 300nit, and no touch panel. but if you need a touch panel, RTP or CTP acceptable customized, the interface could be changed according to your requirements, and brightness also could be custom as your requirement, just send us more details.
We provide different types LCD control boards and interface transfer boards. Please tell us your specific need when you buy any LCD module.
MORE PRODUCTS HERE
 |
 |
 |
| LCD Control Board with 1.89 inch LCD Display | 5 inch Round LCD TFT Display | 3.4 inch 800*800 Round TFT Display Module |
| Model | RV050FWM-300-40 |
| LCD size | 5 inch TFT LCD panel display |
| Display Mode | Normally Black |
| Resolution | 480(RGB)x854 |
| Pixel pitch | 0.0855(H) x 0.0855(V) |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing direction | ALL |

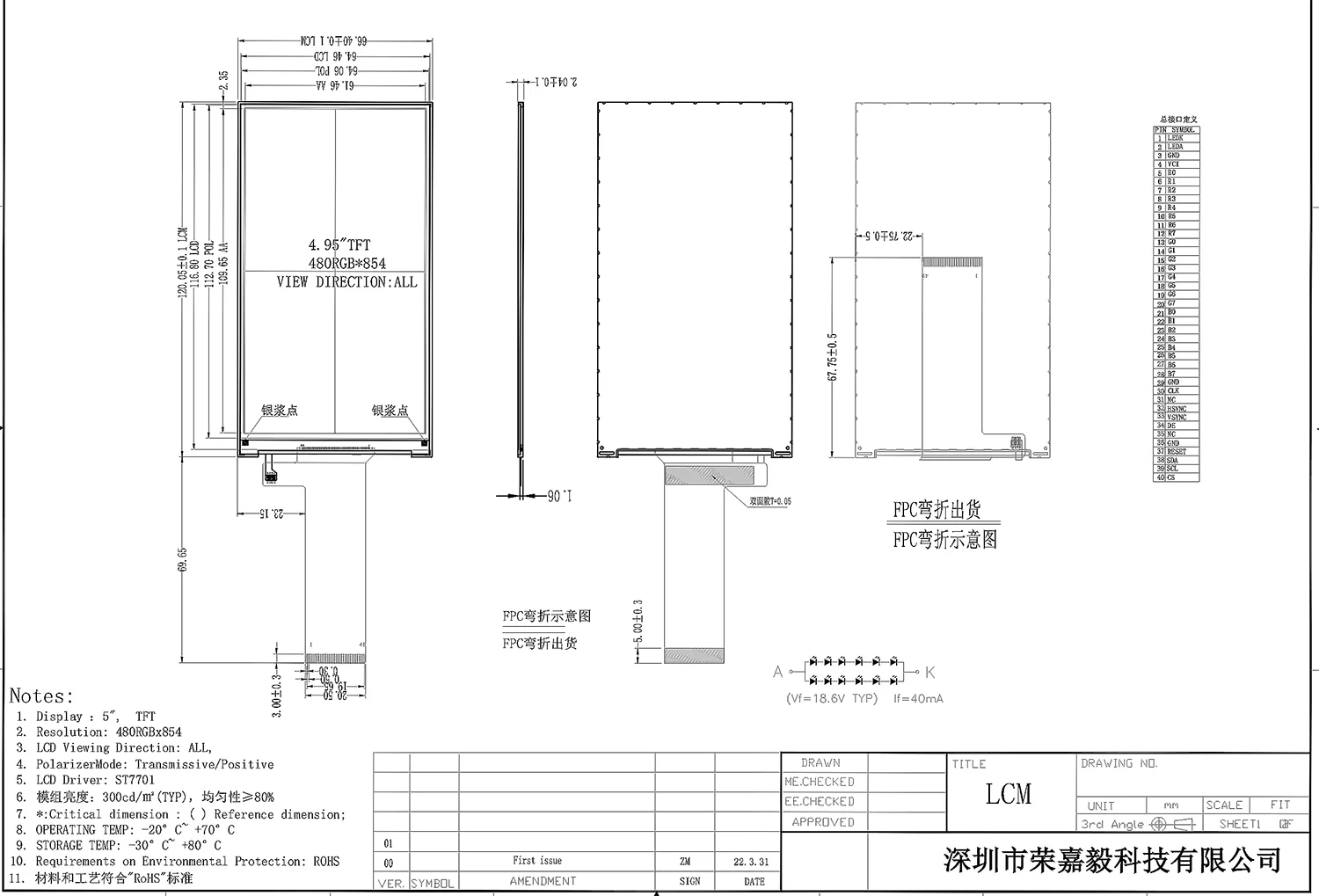

| Module outline dimension | dimension 66.40 (H)*120.05 (V)*2.01(D) |
| LCD AA | 61.46 (H)* 109.65(V) |
| Colors | 16.7M |
| Driver IC | ST7701 |
| Interface | RGB |
| Backlight | White LED |
| Pin connector | 40pin |
| Luminance | 300 cd/㎡ |
| Operating Temperature | -20℃~ +70℃ |
| Storage Temperature | -30℃~ +80℃ |
Not EXACTLY what you need?
We specialize in custom and semi-custom display solutions. Discover our capabilities and collaborate with us to create products that perfectly match your specifications.
Need Display Solutions? Talk with our display expert
At RJY Display, we design and manufacture standard, semi-custom, and fully customized LCD display modules tailored for OEM applications.
Our engineering team works closely with you to understand your requirements and deliver the most cost-effective, reliable solution. Contact us today, and we’ll quickly evaluate your needs and provide an accurate, competitive quote—helping you bring your display ideas to market faster.
