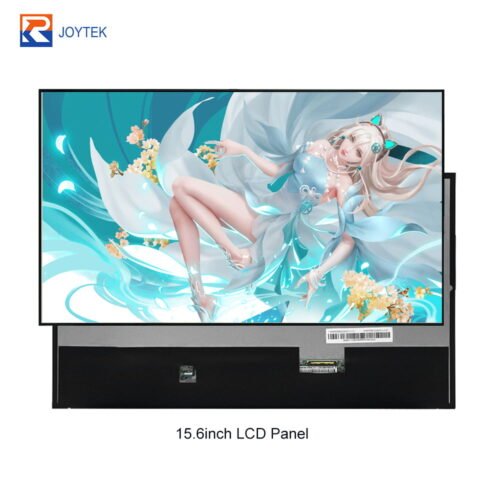

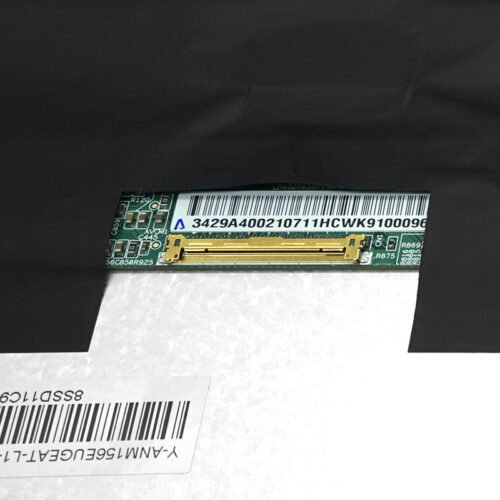

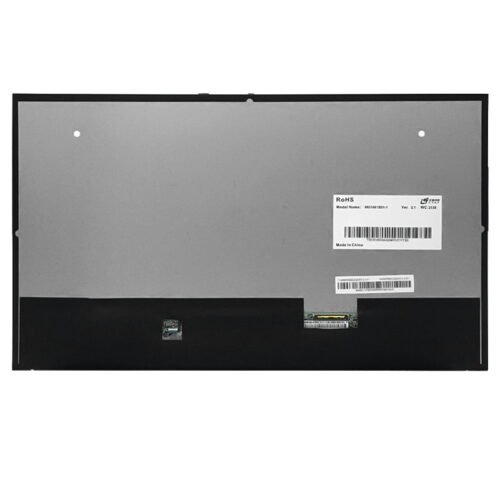

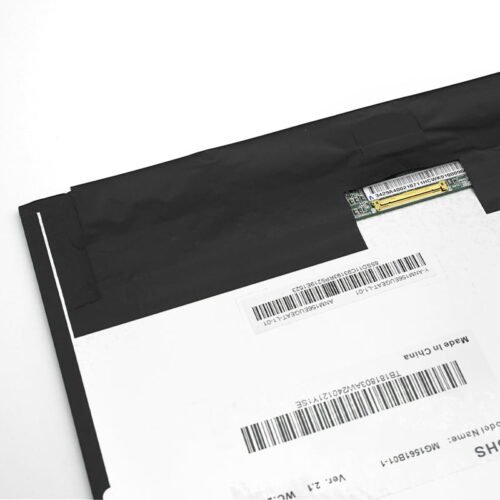

TFT LCD Display Module
Model MG1561B01-1
15.6 inch FHD 1920*1080 LVDS Interface TFT LCD Panel Module
Key specifications
- -Very High Contrast Ratio
- 3000:1
- -Ultra Wide Viewing Angle
- 178°(H)/178°(V) (CR10)
- Interface
- LVDS, EDP
- Pin
- 30pin, 40pin
- Resolution
- 1920*1080, 1366*768
Share your application, interface, touch requirement, controller board requirement and estimated annual volume.
Interface Review
RGB, SPI and controller requirements are checked against the host platform.
Touch Options
Touch support depends on the selected module and project requirements.
Controller Support
LCD and controller board compatibility can be reviewed together.
Customization
Cover glass, backlight, FPC and mechanical coordination are available.
1. Product Description
A 15.6-inch FHD 1920*1080 LVDS interface TFT LCD panel module is a popular choice for a range of applications, from consumer electronics to industrial equipment.
Firstly, let’s start with the basics: what is a TFT LCD panel? TFT stands for thin-film transistor, which is a technology used to enhance the image quality and color accuracy of LCD displays. This type of panel is composed of multiple layers, including a backlight, color filters, and a layer of liquid crystals that change the polarization of light to display images.
Now, let’s talk about the specifics of the 15.6-inch FHD 1920*1080 LVDS interface TFT LCD panel module. As the name suggests, it has a 15.6 inch screen size and a resolution of 1920*1080, also known as Full HD. This means that the display has a pixel density of 141 pixels per inch, which is sharp enough for most applications. Additionally, it uses LVDS (Low Voltage Differential Signaling) technology to transmit data between the display and the system, which allows for a high-speed, high-quality connection.
One of the advantages of this type of display is its wide viewing angle, which is typically around 178°(H)/178°(V ) degrees in both horizontal and vertical directions. This means that the image remains clear and vibrant even when viewed from different angles, making it ideal for use in settings where multiple people need to view the screen at the same time.
Another advantage is its high contrast ratio, which can range from 500:1 to 1000:1 depending on the specific model. This allows for a clear distinction between light and dark areas of the image, enhancing the overall image quality.)
So, where might you find a 15.6-inch FHD 1920*1080 LVDS interface TFT LCD panel module in use? Some common applications include:
Consumer electronics: This type of display is commonly used in laptops, tablets, and monitors due to its high resolution and wide viewing angle.
Industrial equipment: This type of display is also used in industrial equipment, such as factory automation systems, medical devices, and test and measurement equipment, due to its high reliability and durability.
Digital signage: The wide viewing angle and high contrast ratio make this type of display ideal for use in digital signage applications, such as advertising displays in retail settings.
In conclusion, a 15.6-inch FHD 1920*1080 LVDS interface TFT LCD panel module is a versatile and high-quality display option suitable for a range of applications. Its sharp resolution, wide viewing angle, and high contrast ratio make it an attractive choice for consumer electronics, industrial equipment, and digital signage.
Parameter
| Model | MG1561B01-1 |
| Size | 15.6 inch LCD Screen panel |
| Active Area | 344.16 (H) * 193.59 (V) |

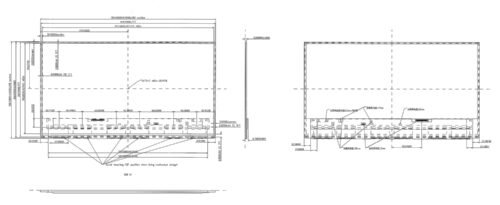

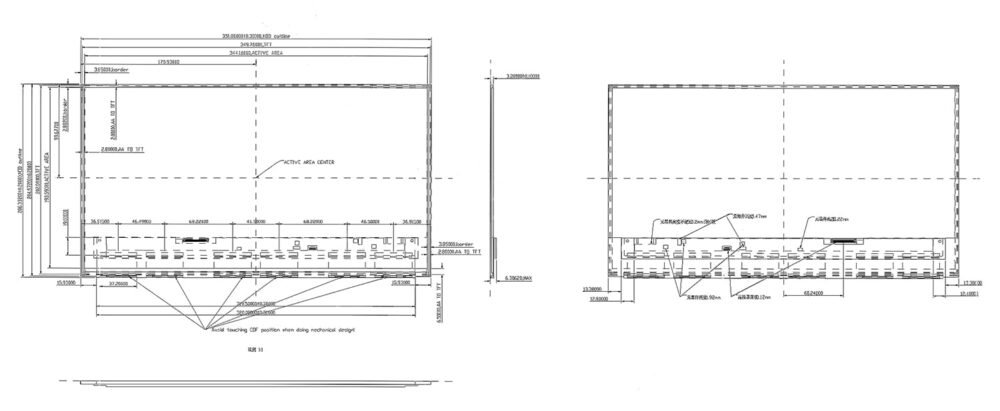

| Module Size | 351.86 (H) *206.332 (V) * 6.3(D) (With PCB) 351.86 (H) *206.332 (V) * 3.2(D) (Without PCB) |
| Driving Scheme | a-Si TFT Active Matrix |
| Number of Pixels | 1920 * 1080 |
| Pixel Pitch (Sub Pixel) | 59.75*179.25 (um) |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Colors | 16.7 M |
| Display Mode | Transmissive Mode, Normally Black |
| Luminance | 250( typ) |
| Color Chromaticity | NTSC 72% (typ) |
| Contrast Ratio | 3000:1(Typ.) |
| View Angle (CR10) | +89/-89 (H), +89/-89 (V) (Typ.) |
| Surface Treatment | Anti-glare, Haze 25%, Hard Coating (3H) |
| BLU Type | E-LED |
| Pin | 40pin |
4. Customization Options
RJY Display supports project-specific adaptation based on existing modules, helping engineering teams evaluate electrical, optical and mechanical fit before production.
- Interface and FPC adaptation
- Brightness and backlight
- Touchscreen and cover glass
- Controller board and firmware
- Mechanical structure coordination
Prepare your review
Include the application, target specification, operating environment, sample quantity and annual demand for a more useful engineering review.
Submit custom requirementsCustom Inquiry
5. FAQ
Is a touchscreen available for this display?
Touchscreen availability depends on the selected display and project requirements.
Can RJY provide a compatible controller board?
Controller board support can be reviewed together with your host interface and timing needs.
What information is needed before ordering a sample?
Application, target specification, quantity, interface and customization needs help the team review fit faster.
Can cover glass or backlight be customized?
Cover glass, backlight and FPC changes can be evaluated for suitable projects.
